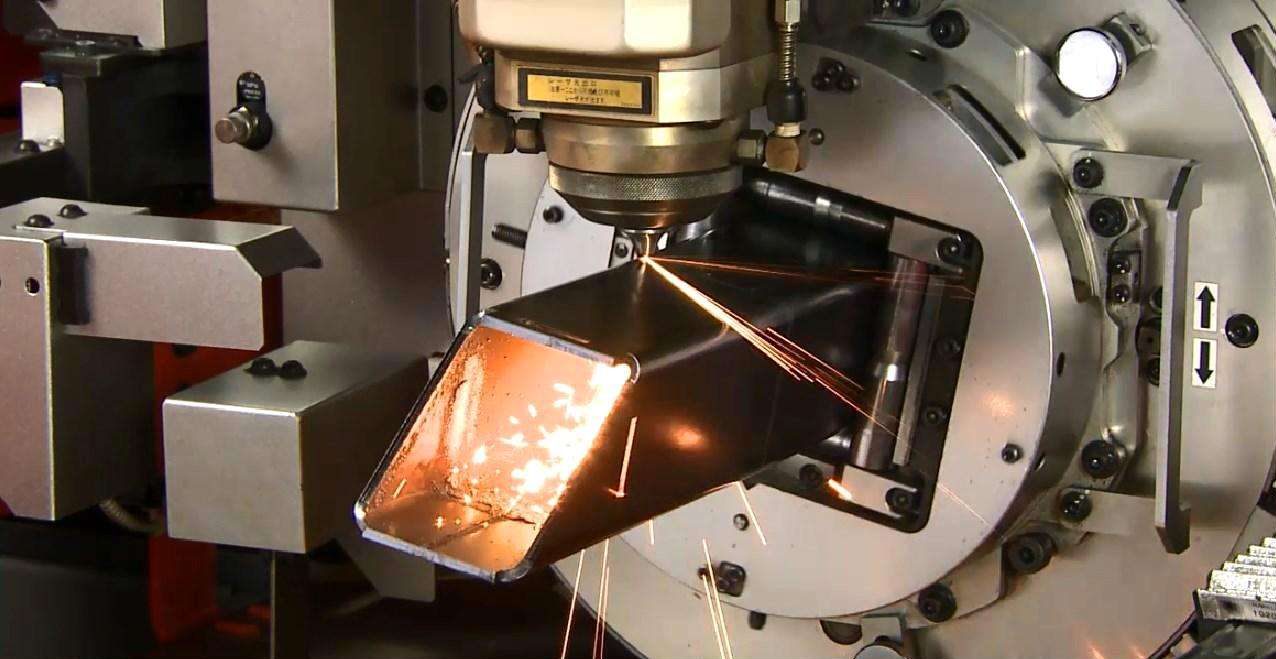

Tube Laser Cutting Machines

High Precision

Accuracy± 0.02mm

With the most advanced laser head and control software , dacu laser cutting machine can easily meet your high percision needs no matter which kind of metal you are cutting.

BurrFree

Incision roughness < Ra6.5

With the most advanced laser head and fiber laser generators from Germany and China , the laser head can easily have enough output for the cutting needs. Therefore no matter how thick your meterail is , just select the right product ,then you can have the perfect cutting result.

High Speed

Moving Speed > 120m/min

Enpowered by the the Fuji servo motor / Panasonic servo motor / SHIMPO reducer from Japan and HIWIN linear guide and YYC gear rack from Taiwan , our laser head can not only move accurately but also move really fast.

Features

High output power

High quality of laser beam

Less focus, large focal distance

Coefficient of efficiency over 30%

Features

Flexible and durable fiber optic cable

Diodes with a lifespan over 100,000 hours

Low cooling requirements

Approximate lifecycle between 4,000 and 5,000 hours

Swiss Made Laser Head

RAYTOOLS Multifunctional Laser Head

Automatic edge finding

Scanning Cutting

Microconnection function

Servo control

Common edge cutting

Rollllback

Breakpoint Return

Leap Cutting

Rotary Knob type focus point adjustment for fine and flexible adjustment. Adjustable range: 20mm, accuracy: 0.05mm. Drawer type mirror seat to make protect glass replacing faster and easier.
Both collimating lens and focal lens could apply compound lens for optimal optical quality and cutting result. Modular design with optional collision-proof protective devices or pneumatic knife to realized swiftly switch between welding and cutting.
Optional magnetic collision-proof protective modular that would activate reliable separation and immediately light off in case of collision.

Other Key Components

Frame

Self Made High Quality Frame Is The Key Of Quality Control

High stability

High strength

Stress Removal

More Durable

Quality Control

Installation Check

Electronic Component Check

Fine Tunning Catagory

Quality Check

Parameters of the machine

This is just a demo machine parameters. For more flexible configurations you can directly contact us.

Parameter	Value
Laser Power(Option)	1000W/1500W/2000W/2500W/3000W/4000W/6000W
Laser Medium	YVO4
Laser Wavelength	1070nm
Rated Output Power	1000W
Beam Quality	<0.373mrad
X-axis Rout(Option)	3000mm/4000mm/6000mm
Y-axis Rout(Option)	1500mm/2000mm
Z-axis Rout	120mm
X/Y-axis Positioning Accuracy	≤±0.03mm/m
X/Y-axis Repositioning Accuracy	≤±0.02mm/m
Max.Moving Speed	120m/min
Max.Load	1500KG
Phase	3
Rated Voltage	380V
Power Frequency	50Hz
Protection Level	IP54

Laser Parameters

This is the laser parameters of RFL-C3300. To know more laser head/source information you can directly contact us.

Material	Thickness(mm)	Cutting Speed(m/min)	Gas Type
Stainless Steel	1	25-40	Nitrogen
	2	18-20	Nitrogen
	3	8-10	Nitrogen
	5	3-4	Nitrogen
	6	2.2-3	Nitrogen
	8	1.2-1.5	Nitrogen
Carbon Steel	1	25-30	Oxygen
	3	3.5-4.5	Oxygen
	6	2.2-2.8	Oxygen
	8	1.6-2	Oxygen
	10	1.1-1.4	Oxygen
	12	0.9-1.1	Oxygen
	14	0.8-0.9	Oxygen
	16	0.7-0.8	Oxygen
	18	0.65-0.7	Oxygen
	20	0.55-0.65	Oxygen
Aluminum	1	25-40	Nitrogen
	3	8-10	Nitrogen
	6	1.6-2	Nitrogen
Brass	1	25-35	Nitrogen
	2	12-15	Nitrogen
	3	6-8	Nitrogen
	4	3-4	Nitrogen
Copper	1	15-20	Oxygen
Copper	2	8-10	Oxygen
